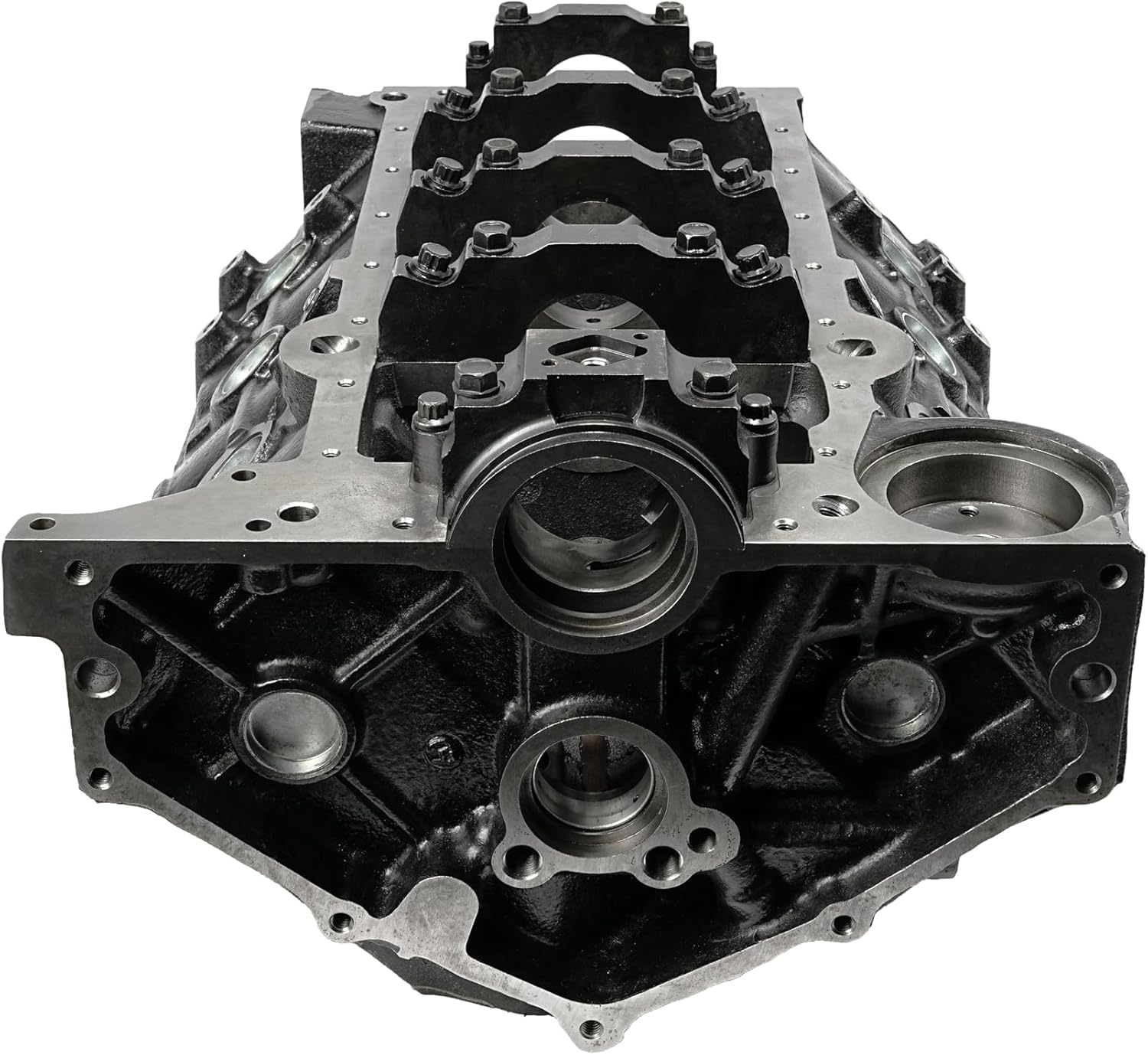

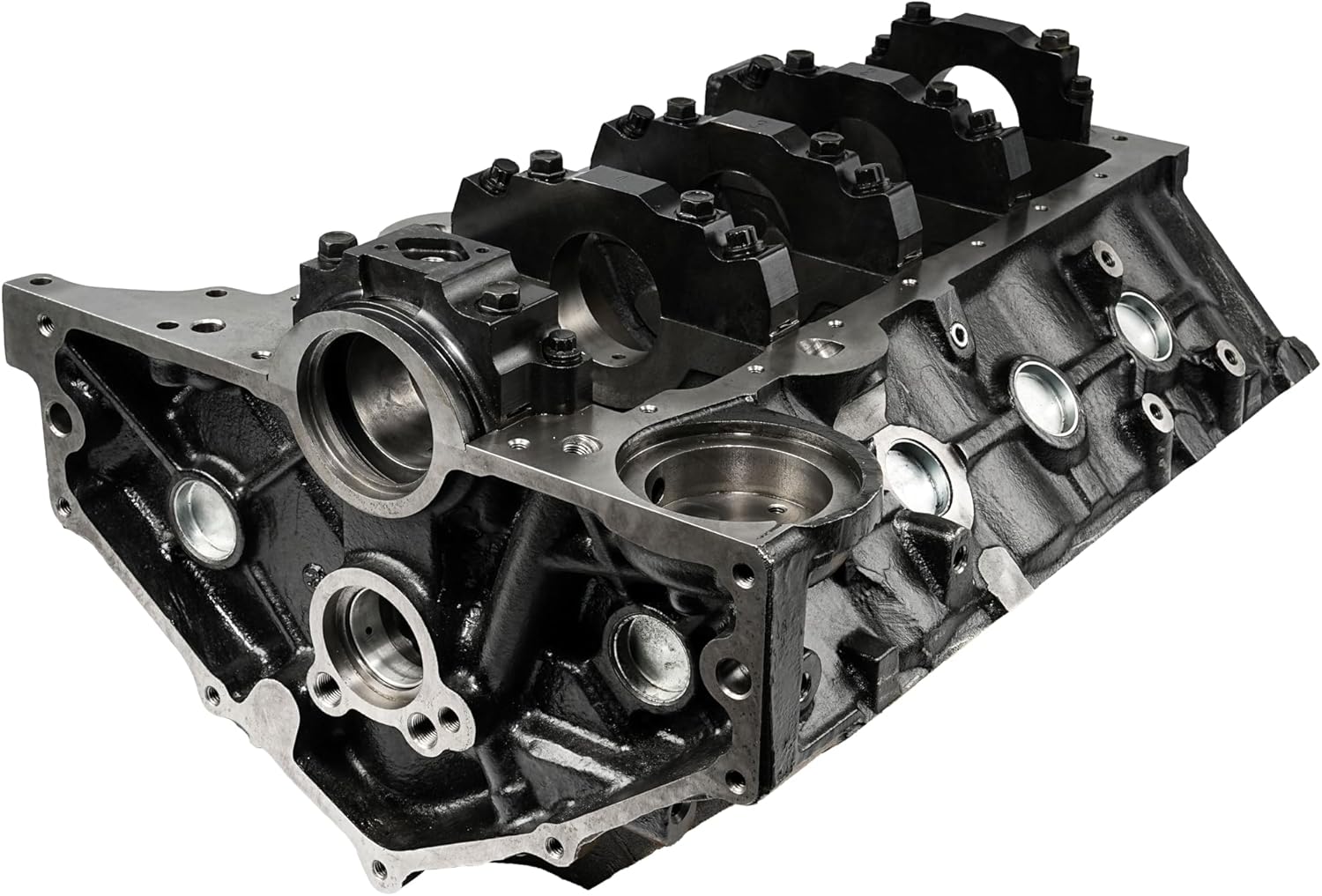

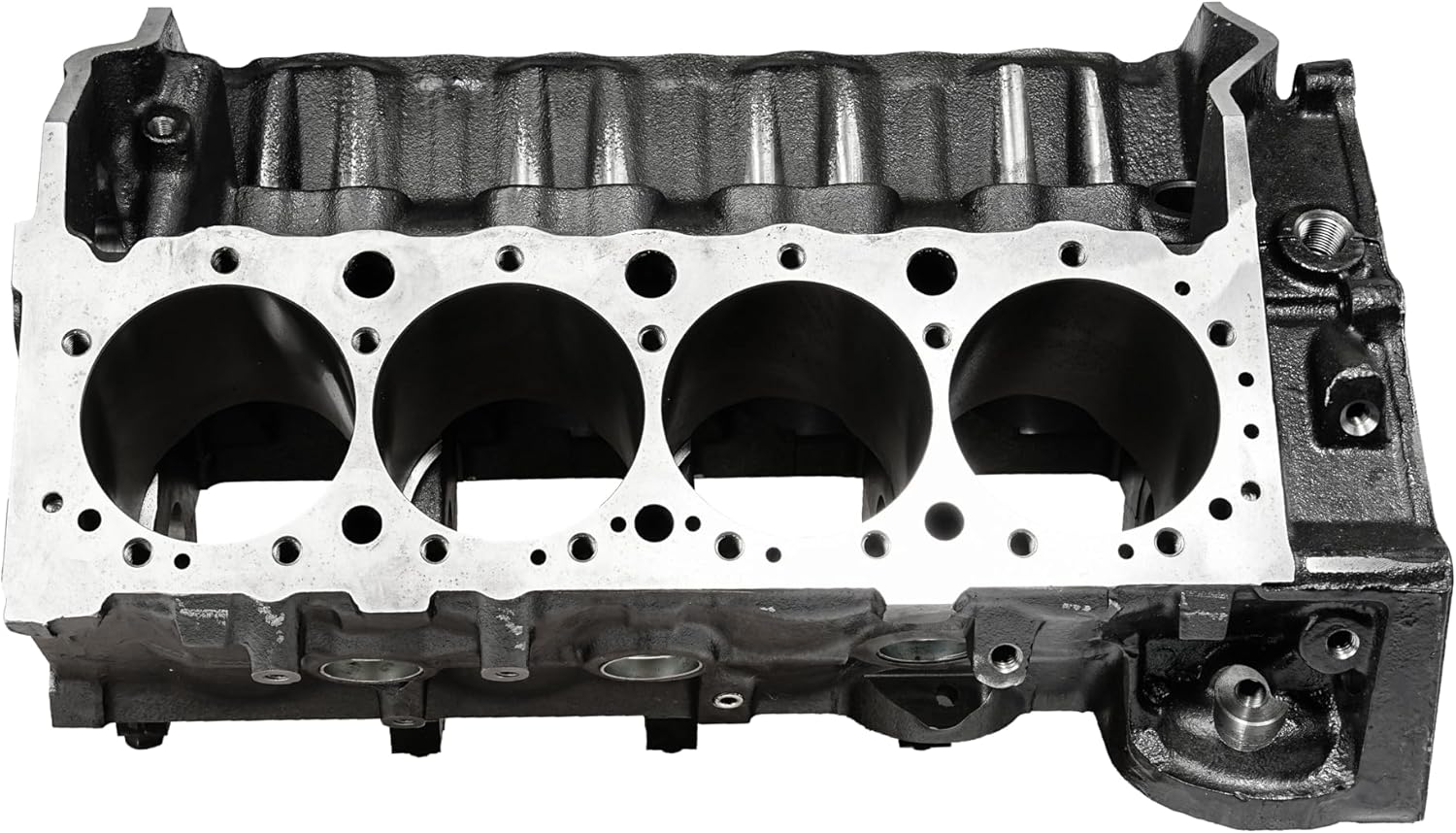

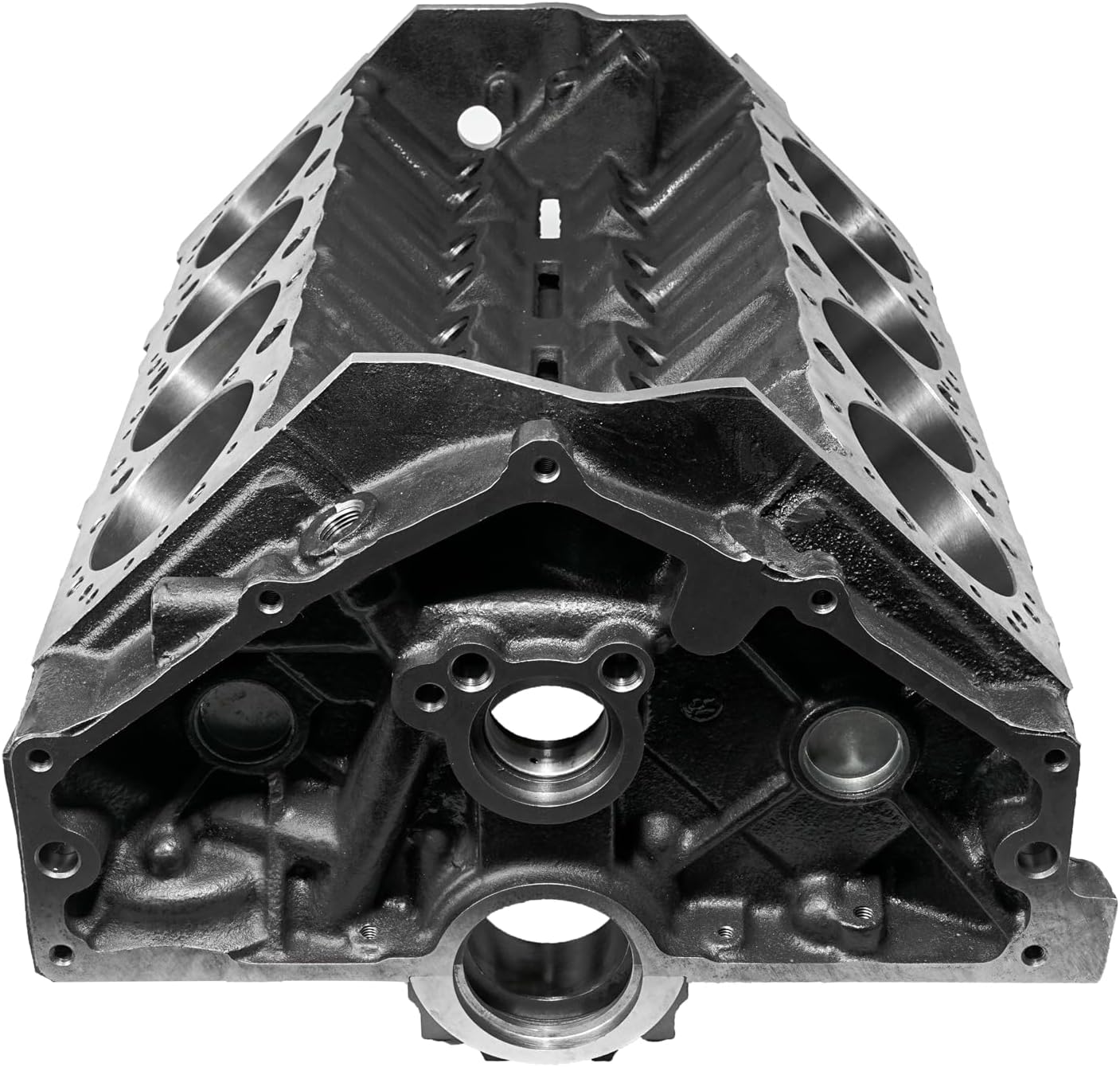

Billet Iron Engine Block for Chevy SBC 350 B-4.000 M-350 DH-9.025 4-Bolt
Product details
| Management number | 215321611 | Release Date | 2026/04/12 | List Price | $880.00 | Model Number | 215321611 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Deck Thickness:0.675 in. MinFuel Pump :Standard Mechanical ProvisionFuel Pump Pushrod:Standard LengthFreeze Plugs:10 x 1-5/8 in. Press In Cup PlugsLifter Bores:SBC 0.8427-0.8437 in.Main Bearing Size:2.450 in. (SBC 350)Main Bearing Bore:2.649 in. (SBC 350)Main Cap Bolts:#1 7/16 in. (2) 3/8 in. (2)#2, 3, 4 7/16 (2) Splayed (2)#5 7/16 in. (2) 3/8 in. (2)Main Cap Press:0.005 in.Main Caps:All 5 Billet Steel. 3 Center Caps SplayedMain Cap Register: Deep Stepped Register (No Need for Dowels)Oil System:Wet Sump - Main Priority Oiling (Can Use Dry Sump)Oil Pump Shaft:350 0.481 in. OD - StandardOil Filter: SBC, Uses 2 Bolt AdapterOil Pan:Standard 350 SBCRear Main Seal:Standard 350 SBCSerial No. Location:Laft Front & Main CapsStarter:Standard SBCStud Holes, Head:Blind HolesTiming Chain/Gears:Standard SBC ComponentsTiming Cover: Standard Cam Location SBCTorque Specs: 1 - 5 7/16 in. Bolts 65 ft. lbs.1 & 5 3/8 in. Bolts - 35 ft. lbs.Weight:205 Lbs @ 4.0 in. BoreQuantity: Sold individually.Notes:Cam Bearings not IncludedCalculator:CFM Calculator
- Cylinder Bore Diameter: 4.000 in.
- Bore & Stroke:4.185 in. x 4.000 in. Max Recommended
- Cam Journal OD:Standard SBC - 1.869
- Cam Plug:2.375 in. Dia. Cup Plug
- Cylinder Wall Thickness:0.275 in. min @ 4.185 in. Bore
- Deck Height:9.025 in.
| Brand | Pateyney |
|---|---|
| Model | YMXDM-3275-2 |
| Exterior | Billet Main Iron |
| Manufacturer | Pateyney |
| Item model number | YMXDM-3275-2 |
| Manufacturer Part Number | YMXDM-3275-2 |
